ALMACO welding tables, made in the USA
Weld Fixture Tables With a 2-Inch Hole Grid
Six sizes of ALMACO fixture tables in 3/8 in or 1/2 in Grade 50 steel. Sold and supported by T.R. Wigglesworth Machinery Company since 1935.
- 2 in hole grid, drilled and tapped for clamps and fixtures
- Six sizes, from 2.5' x 4' up to 4' x 8'
- 3/8 in or 1/2 in Grade 50 steel, flat to +/- .02 in
Full service machine tool provider since 1935. Tables listed from $4,510.
Prefer to talk? Call 440-359-2655
Get weld fixture table pricing
Tell us the size and options you need. We come back with a written quote.
Why shops pick these fixture tables
Clamp and fixture anywhere
A 2 in hole grid runs across the top. The top row of holes on all sides is drilled and tapped, so your clamps and stops lock right where you need them.
Built to stay flat
Tops are held to +/- .02 in flatness and made from 3/8 in Grade 50 steel, with a 1/2 in Grade 50 upgrade when you want more mass.
Six sizes to fit your bay
Choose 2.5' x 4', 3' x 3', 3' x 5', 3' x 8', 4' x 4' or 4' x 8'. Side heights run from 4 in to 11 in depending on the model.
Made in the USA
ALMACO builds every table in Nevada, Iowa with American steel and labor. The company started in 1876 and has over 135 years in metalworking.
Clear listed pricing
Table prices are published by size and option, from $4,510 for the 3' x 3' to $8,855 for the 4' x 8' with the 1/2 in steel top.
One source for your shop
T.R. Wigglesworth also sells machine tools, parts and tooling, so you can add equipment to the same conversation.

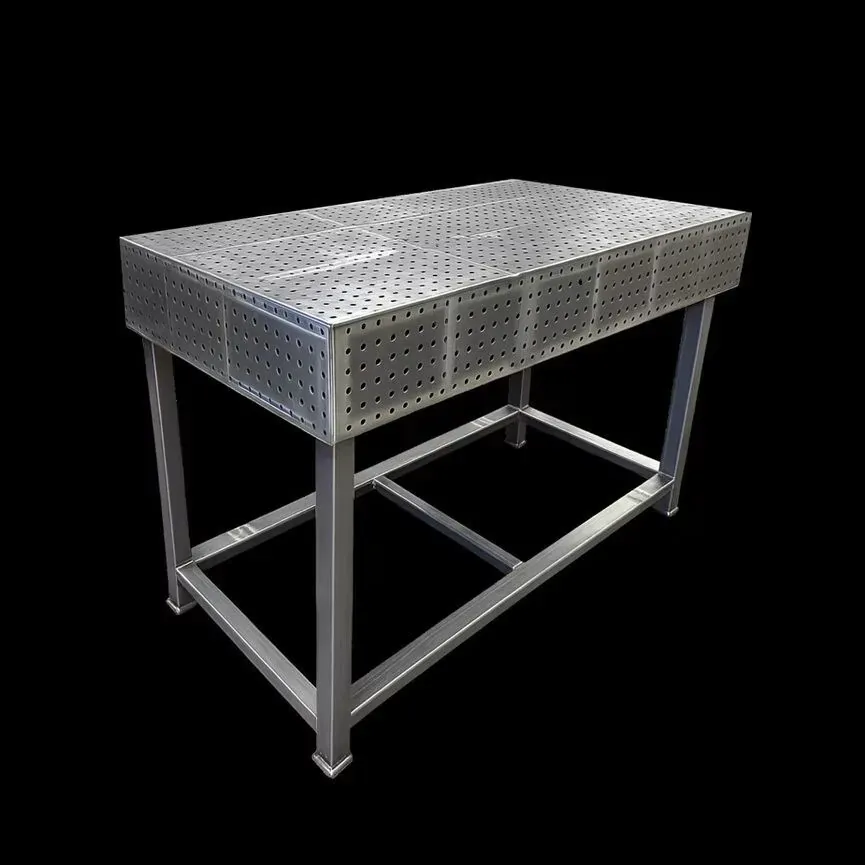

ALMACO weld fixture table specs
These tables were designed by fabricators for fabricators. ALMACO developed and tested them in its own plants, where it builds heavy equipment for the construction and agriculture industries.
Pick the size, the steel thickness and whether you want locking casters. Tables are built to order for the 2026 model year.
- Sizes: 2.5' x 4', 3' x 3', 3' x 5', 3' x 8', 4' x 4' and 4' x 8'
- Standard top: 3/8 in Grade 50 American steel; 1/2 in Grade 50 upgrade available
- 2 in grid spacing; 16 mm holes on smaller tables, 28 mm on larger tables
- Top row holes drilled and tapped: 5/8 in - 11 or 1 in - 12 depending on model
- Flatness held to +/- .02 in
- Working height 38.8 in to 44.05 in, depending on the feet
- Weights from about 464 lbs (2.5' x 4') to about 2,670 lbs (4' x 8' with 1/2 in top)
- Optional locking casters for tables you need to move
What happens after you ask
Tell us your table
Send the size you want, the steel thickness and whether you need locking casters.
Get a written quote
We confirm the configuration, the listed price and the freight details for your address.
Place your order
Tables are built to order. We keep you posted on your build and shipment.
Frequently asked questions
How much does a weld fixture table cost?
Prices are listed by size and options. The 3' x 3' starts at $4,510, the 2.5' x 4' at $4,620, the 3' x 5' at $4,839, the 4' x 4' at $4,950, the 3' x 8' at $7,699 and the 4' x 8' at $8,635. The 4' x 8' with a 1/2 in steel top is $8,855. Freight is quoted separately.
What sizes can I get?
Six sizes: 2.5' x 4', 3' x 3', 3' x 5', 3' x 8', 4' x 4' and 4' x 8'. Side heights range from 4 in to 11 in depending on the model.
Can I upgrade the top or add casters?
Yes. You can move from the standard 3/8 in Grade 50 top to 1/2 in Grade 50, and add locking casters. For example, the 4' x 4' with the 1/2 in top and locking casters is listed at $5,792.
How accurate is the hole pattern and the top?
The grid is on 2 in spacing and the top row of holes on all sides is drilled and tapped, 5/8 in - 11 or 1 in - 12 depending on the model. Tops are held to +/- .02 in flatness.
Do you ship to my area?
We sell across all 50 states, Canada and North America. Shipping details for your address are confirmed with your quote.
Who builds these tables?
ALMACO, founded in 1876, builds them entirely in Nevada, Iowa using American steel, labor and craftsmanship. T.R. Wigglesworth Machinery Company sells and supports them.
Get pricing on your weld fixture table
Tell us the size, steel thickness and options you want. We will send a written quote with freight details for your shop.
- 2 in hole grid, drilled and tapped for clamps and fixtures
- Six sizes, from 2.5' x 4' up to 4' x 8'
- 3/8 in or 1/2 in Grade 50 steel, flat to +/- .02 in
Prefer to talk? Call 440-359-2655
