Clausing knee mills, new and used
Clausing Manual Vertical Milling Machines for Working Shops
Rigid knee mills with manual variable speed from 60 to 4,300 RPM. We quote the right size, then handle delivery, installation and operator training.
- Manual variable speed spindle: 60-4,300 RPM, 3 hp, R8 taper
- 10" x 54" table with hardened and ground ways
- Delivery, installation and operator training available
A Clausing dealer for over 40 years. Machine tools since 1935.
Prefer to talk? Call 440-359-2655
Get pricing on your manual knee mill
Tell us the table size and power you need. A machine tool specialist will follow up with options and pricing.
Why shops choose a Clausing manual mill
Full manual speed control
Sheave pulley drive gives you 60 to 4,300 RPM, with a low range of 60-500 and a high range of 550-4,300 RPM.
Built to stay accurate
Meehanite castings, hardened and ground X, Y and knee ways, plus Turcite B on the X/Y ways for wear resistance.
Set up and ready to run
Purchases can include delivery, installation, operator training and technical support, so your crew is productive sooner.
Parts help when you need it
Backed by the Clausing Service Center with over 80,000 parts and 95% of orders shipped within 24 hours.
New or used options
We are a full service machine tool dealer, so we can quote new machines or used equipment when the budget is tight.
Add a digital readout
Newall DRO systems are available, including the DP700 mill package and the NMS800 readout.

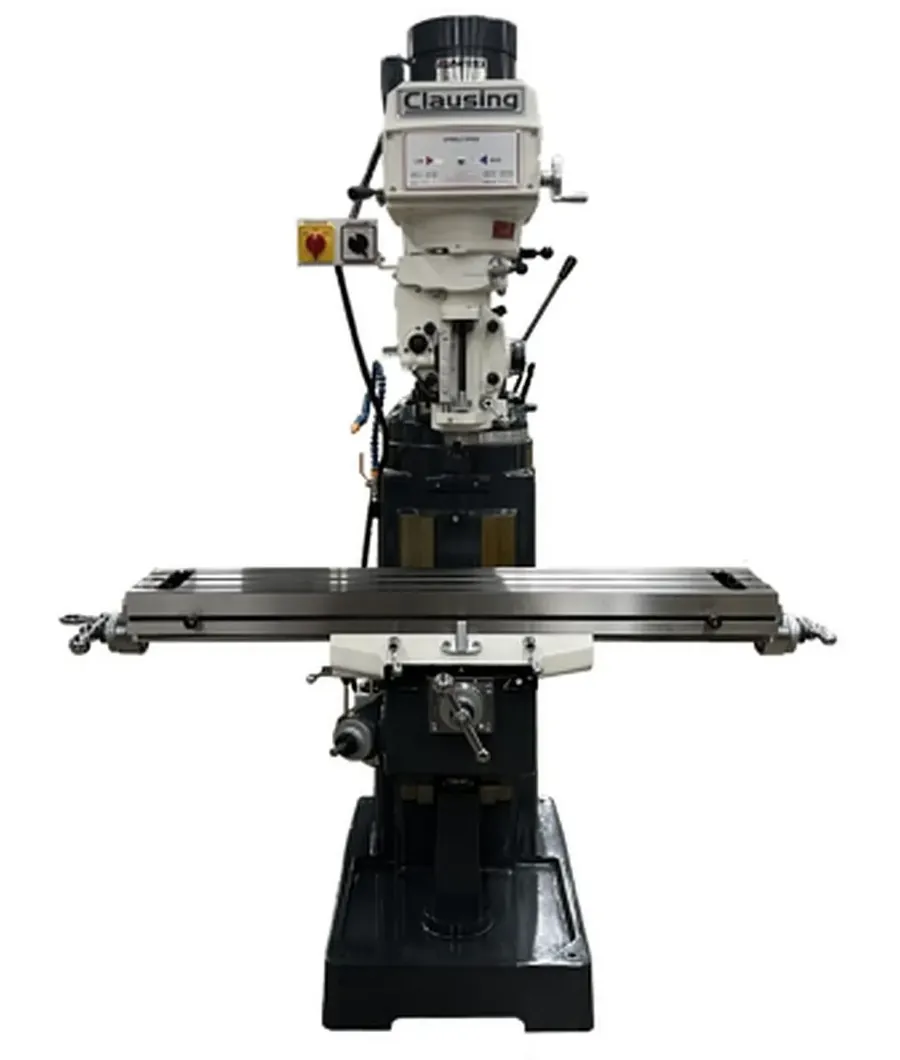

Specs on the Clausing 3VS08 manual knee mill
The Clausing 3VS08 is a manual vertical knee mill made for daily shop work. The head articulates 90 degrees left and right and 45 degrees up and down, so you can cut compound angles without a second setup.
Clausing knee mills also come in other table sizes and drive types. Some models can run as manual machines with a DRO, semi-automatic, or as full 2 or 3 axis CNC. Tell us your parts and we will match the model.
- Table size 10" x 54" with three T-slots, 0.638" wide
- Manual variable spindle speed, 60-4,300 RPM
- 3 hp spindle with R8 taper and 5" quill travel
- Travels: 39.6" X, 15.6" Y, 15" knee, 22" ram
- Head swivels 90 degrees left and right, 45 degrees up and down by worm gear
- Table load capacity 665 lbs; machine weight 2,985 lbs
- Power required: 208/230/460V, 3 phase
- Clausing knee mill line spans 9 x 49 to 11 x 58 inch tables, 3 hp or 5 hp spindles
- One year warranty backed by the Clausing Service Center
A machine tool source you can check out
“I purchased a used CNC lathe from Tom and his team. They were super helpful through the entire process from sending pictures and videos of the machine running to helping set up rigging and shipping. I would absolutely purchase through them again. I would recommend them for anyone looking for professional no BS used equipment sales.”
What happens after you ask for a quote
We review your job
Tell us your part sizes, floor space and available power. We confirm which knee mill model and table size fits.
You get a written quote
We price the machine with the options you need, such as a Newall DRO, plus delivery and installation.
We deliver and start you up
We coordinate shipping and rigging, install the machine, and train your operators. Parts and support follow.
Frequently asked questions
How much does a manual vertical milling machine cost?
Machine pricing is quote based. Price depends on the model, table size, spindle power and options like a digital readout. Send us your requirements and we will put a number in writing.
Do you sell used milling machines too?
Yes. We are a full service machine tool dealer selling both new and used metalworking machine tools. Ask us what is available when you request your quote.
Is delivery and installation included?
Machine purchases typically include delivery, installation, operator training, technical support and parts service. We confirm exactly what is included in your quote.
Where do you ship?
We sell across all 50 states, Canada and North America. Our offices are in Bedford, Ohio and Centreville, Virginia.
What power supply do I need?
The Clausing 3VS08 runs on 208/230/460V, 3 phase power. Tell us the power in your building and we will confirm the right configuration.
Can I add a digital readout?
Yes. We stock Newall Electronics DRO systems, including the DP700 mill package and the NMS800 readout, for milling, boring, turning and grinding work.
Ready to price your manual knee mill?
Send us your table size, power and timeline. We will match a Clausing manual vertical milling machine to your shop and quote it with delivery, installation and training.
- Manual variable speed spindle: 60-4,300 RPM, 3 hp, R8 taper
- 10" x 54" table with hardened and ground ways
- Delivery, installation and operator training available
Prefer to talk? Call 440-359-2655
