Socomec DC load break switches
PV Disconnect Switches Rated to 1500 VDC
ValuAdd supplies Socomec SIRCO and INOSYS DC disconnect switches for solar arrays, combiner boxes and energy storage. Send your specs and we will quote.
- 20 A to 2000 A ratings, 2 to 6 poles for PV circuits
- 1500 VDC breaking with just 2 poles on SIRCO MOT DC
- CAD files, datasheets and sizing help before you buy
UL 98B listed DC switches, tested to DC-21B and DC-PV2 utilization categories
Prefer to talk? Call +1 336-272-9632
Get PV disconnect switch pricing
Tell us the DC voltage, current and pole count you need. Our team replies with a quote and the documents to match.
Why engineers spec these DC switches
Made for DC, not adapted
Socomec DC switches break 750 VDC per pole and carry UL 98B, UL 508I and IEC 60947-3 ratings for DC-21B and DC-PV2 duty.
Fits tight combiner boxes
SIRCO MC PV has a compact frame with factory fitted bridging bars, so it drops into combiner boxes and solar inverters.
Mount it your way
Choose DIN rail, back plate, door or Quick Fix mounting. Front operation with direct position indication and visible contacts.
Holds up outdoors
INOSYS LBS runs from -40°F to +122°F with no derating to 131°F, and is tested for vibration, shock and 95% humidity.
Help choosing the right part
Send your voltage, current and poles. We match the frame, poles and operator, and send CAD files and manuals.
One source for the DC circuit
Switches, PV fuse holders, ESS fuses, busbars and power monitoring all come from the same supplier.

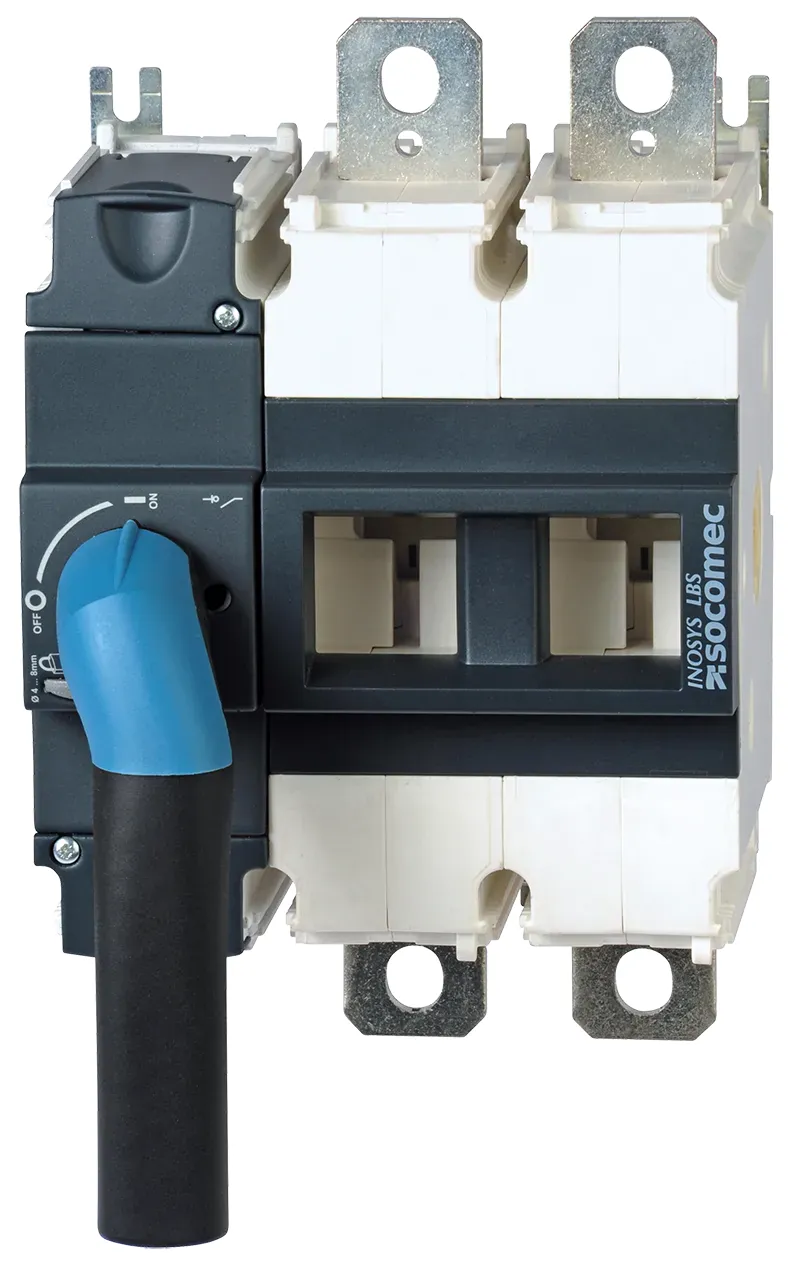

PV and DC disconnect switches we supply
ValuAdd distributes Socomec load break and disconnect switches built for photovoltaic and DC circuits. Ratings run from small combiner box switches up to 2000 A motorized units at 1500 VDC, so the same range covers strings, inverters and battery racks.
Every switch is quoted to your application. Give us the DC voltage, rated current, pole count and how it will be operated, and we will confirm the part numbers and send documentation.
- SIRCO MC PV: 20 A to 40 A, 600 to 1500 VDC, 2 to 6 poles, UL 508I and IEC 60947-3
- SIRCO MC PV mounting: DIN rail, back plate, door or Quick Fix
- INOSYS LBS UL 98B: 10 A to 1200 A, 1000 to 1500 VDC, 750 VDC break per pole
- INOSYS LBS DC UL ESS: 800 A, 1000 A and 1200 A at 1500 VDC for storage systems
- SIRCO MOT DC: 2000 A, 1500 VDC, 4 poles, motorized front operation
- RM PV UL fuse holders for 10x38 gPV fuses up to 30 A at 1000 VDC, with optional blown fuse LED
- FP ESS fuses: 160 A to 3000 A, up to 1500 VDC and 250 kA short circuit rating
- Operating range -40°F to +122°F, with no derating up to 131°F (55°C)
Specs and support behind every quote
“ValuAdd consistently delivers high-quality electrical components that meet our demanding industrial requirements. Their technical expertise is unmatched in the industry.”
“ValuAdd's deep knowledge of electrical components and their manufacturer relationships have been invaluable for our panel building projects. They consistently deliver the right solutions.”
“The team at ValuAdd provides exceptional support for component selection and system integration. Their manufacturer relationships ensure we get authentic, quality products.”
What happens after you send the form
We review your DC specs
Share voltage, current, poles, mounting and enclosure. We check the range for a match.
You get a quote and documents
We send part numbers, pricing, datasheets and CAD files so you can finish the design.
You place the order
Approve the quote and we process the purchase. Technical support stays available.
Frequently asked questions
How much does a PV disconnect switch cost?
Pricing is available on request. Cost depends on the rated current, DC voltage, number of poles, operator type and mounting, so we quote each request after we see your specs.
What DC voltage and current can these switches handle?
SIRCO MC PV covers 20 A to 40 A at 600 to 1500 VDC. INOSYS LBS UL 98B covers 10 A to 1200 A at 1000 to 1500 VDC, with up to 2000 VDC available. SIRCO MOT DC reaches 2000 A at 1500 VDC.
Are the switches UL listed for PV work?
Yes. SIRCO MC PV is built to UL 508I and IEC 60947-3 with specific photovoltaic testing. INOSYS LBS is UL 98B listed and meets IEC 60947-3 for DC-21B and DC-PV2 utilization categories.
Will it fit inside a combiner box?
SIRCO MC PV uses a compact frame designed for combiner boxes and solar inverters, with factory fitted bridging bars and DIN rail, back plate, door or Quick Fix mounting options.
Do you also supply PV fuses and fuse holders?
Yes. We supply Socomec RM PV UL modular fuse holders for gPV fuses up to 30 A at 1000 VDC, and FP ESS DC fuses up to 1500 VDC and 250 kA for energy storage.
Where do you ship?
ValuAdd serves the United States nationwide, with selected products also available in Canada, Europe and globally. Shipping details are confirmed with your quote.
Get your PV disconnect switch quoted
Send the DC voltage, current, pole count and mounting you need. We will match the Socomec switch and send pricing with the datasheets and CAD files.
