Socomec load break & fusible switches
Industrial Disconnect Switch Sized for Your Panel
Non-fused, fusible and DC disconnect switches from 10 A to 1200 A. Send your amps, poles and voltage. We quote the right part with the data you need.
- Non-fused and fusible switches rated 10 A to 1200 A
- DC switching up to 1500 VDC for solar PV and storage
- CAD files, datasheets and engineer support with every quote
SIRCO UL 98C is listed to UL 98C, Guide WHTY2, File E201138.
Prefer to talk? Call +1 336-272-9632
Get disconnect switch pricing
Tell us the rating you need. We reply with part options and a quote.
Why engineers spec these switches
The right switch for the load
Choose non-fused load break, fusible or DC switches. We match amps, poles and voltage to your design.
Safety you can see
SIRCO switches use double breaking per pole with visible contacts and direct position indication.
Built for rough sites
Glass fiber reinforced polyester bodies, plus vibration, shock and humidity testing on DC models.
Listed to US standards
UL 98, UL 98B and UL 98C files, CSA 22.2 certification and IEC 60947-3 compliance.
Documents for your submittal
CAD files, installation manuals and catalog pages come from the manufacturer resource center.
Supply across the US
ValuAdd serves customers nationwide in the United States, with selected products served worldwide.

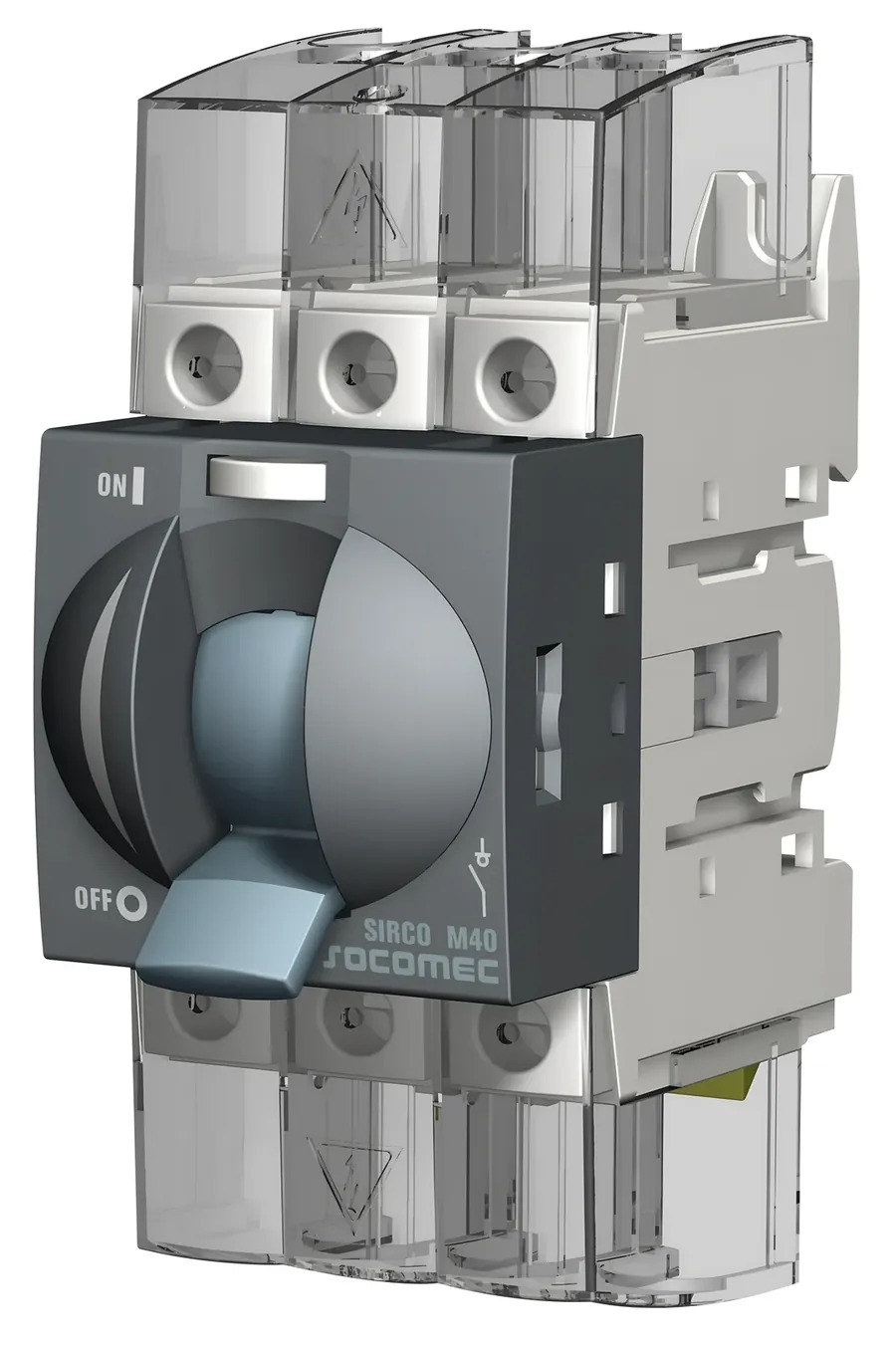

Disconnect switch options we quote
ValuAdd supplies Socomec load break and fusible disconnect switches for panels, switchboards, PV arrays and battery systems. Whether you need a simple 100 A non-fused switch or a 1200 A DC load break switch, we match the frame, poles and operator to your drawing.
Tell us amps, voltage, pole count and how the switch is operated: front handle, door mount or motorized. We come back with part numbers, pricing and the technical documents.
- SIRCO UL 98C non-fused load break: 400 A, 800 A, 1000 A, 3 poles, 800 VAC
- FUSERBLOC UL fusible disconnect: 30 A to 800 A, CC, J and L fuses, up to 200 kA rms
- FUSERBLOC UL TEST position up to 200 A lets you check control circuits without power
- INOSYS LBS UL 98B DC switches: 10 A to 1200 A, 1000 to 1500 VDC, 1+1 to 3 poles
- SIRCO MC PV for combiner boxes: 20 A to 40 A, 600 to 1500 VDC, 2 to 6 poles
- SIRCO MOT DC motorized switch: 2000 A at 1500 VDC, 4 poles, front operation

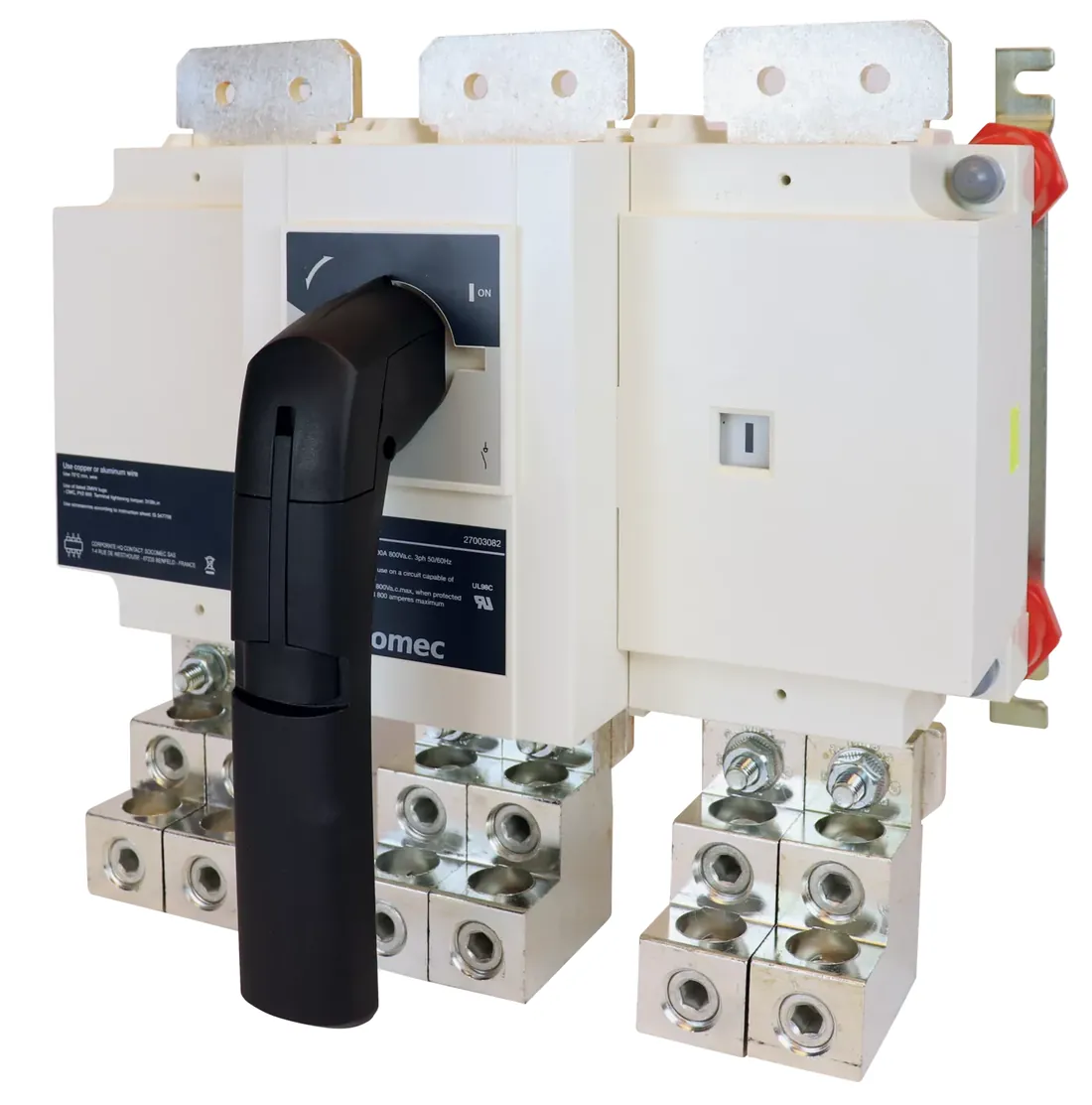

- SIRCOVER UL manual transfer switches: 100 A to 1200 A, 2, 3 or 4 poles
- Mounting choices include DIN rail, back plate, door mounting and Quick Fix
Ratings and standards at a glance
“ValuAdd consistently delivers high-quality electrical components that meet our demanding industrial requirements. Their technical expertise is unmatched in the industry.”
“ValuAdd's deep knowledge of electrical components and their manufacturer relationships have been invaluable for our panel building projects. They consistently deliver the right solutions.”
“The team at ValuAdd provides exceptional support for component selection and system integration. Their manufacturer relationships ensure we get authentic, quality products.”
What happens after you ask for a quote
You send the specs
Give us amps, voltage, poles and the application. Add a drawing or part number if you have one.
We match the part
Our team picks the non-fused, fusible or DC switch that fits the rating, enclosure and operator.
You get pricing and data
We send part numbers, a quote and the CAD files or datasheets you need for your submittal.
Frequently asked questions
How much does a disconnect switch cost?
Pricing is quote based. Cost depends on the amp rating, pole count, voltage and options such as handles or auxiliary contacts. Send your specs and we price the exact part.
Do you have a 100 amp disconnect?
Yes. FUSERBLOC UL fusible switches cover 30 A to 800 A and INOSYS LBS UL 98B DC switches cover 10 A to 1200 A, so 100 A ratings are available. We confirm the right frame for your voltage and poles.
What is the difference between fused and non-fused?
A non-fused switch such as SIRCO UL 98C isolates and breaks the circuit. A fusible switch such as FUSERBLOC UL holds fuses and adds overload and short circuit protection, with breaking capacity up to 200 kA rms.
Can you supply DC disconnects for solar or battery storage?
Yes. SIRCO MC PV covers 600 to 1500 VDC at 20 A to 40 A for combiner boxes. INOSYS LBS UL 98B covers 1000 to 1500 VDC up to 1200 A, and motorized SIRCO MOT DC reaches 2000 A at 1500 VDC.
Are these switches UL listed?
SIRCO UL 98C is listed under UL 98C, Guide WHTY2, File E201138. FUSERBLOC UL meets UL489, UL98 and CSA22.2. INOSYS LBS meets UL 98B and IEC 60947-3.
Who do you sell to and where do you ship?
We supply businesses: panel builders, system integrators, OEMs, contractors and plant teams across the United States. Selected products are also served in Canada, Europe and globally. We do not sell residential or DIY products.
Ready to price your disconnect switch?
Send the amps, voltage and pole count. Our team replies with part options, pricing and the documents you need for your submittal.
- Non-fused and fusible switches rated 10 A to 1200 A
- DC switching up to 1500 VDC for solar PV and storage
- CAD files, datasheets and engineer support with every quote
Prefer to talk? Call +1 336-272-9632
