Copper, laminated and flexible busbars
Copper Busbar Supply for Panels and Switchboards
Get rigid copper bars, prepunched bars, laminated and flexible busbars, plus the supports and insulators that hold them in place.
- Rigid copper bars 20–160 mm high and 4.5–10 mm thick
- Laminated busbars cut, bent and punched to your drawing
- Supports and insulators tested for short-circuit forces
Socomec rigid copper bars in 44 versions, plus Isoflexx and Ultraflexx flexible busbars
Prefer to talk? Call +1 336-272-9632
Request busbar pricing
Tell us the bar size, current rating and quantity. We reply with a quote and the technical details.
Why buy your busbars from ValuAdd
One source for the whole bar run
Solid copper bars, flexible links, supports and insulators come from one quote, so parts fit together.
Made to your drawing
Laminated busbars can be cut, bent, twisted and punched, with press welded or tacked connections.
Standards you can specify to
Busbar supports meet IEC 61439-1 and IEC 60865-1. Insulators use UL94 V0 material. Isoflexx holds UL 758 and UL 508.
Flexible copper where bars will not fit
Ultraflexx flat copper mesh absorbs vibration and switching surges and bends around tight cabinet layouts.
Drawings and data on hand
CAD files, datasheets and technical documents are available so you can finish your panel design.
Help picking the right part
Our team works through bar size, current and mounting with you before you order.

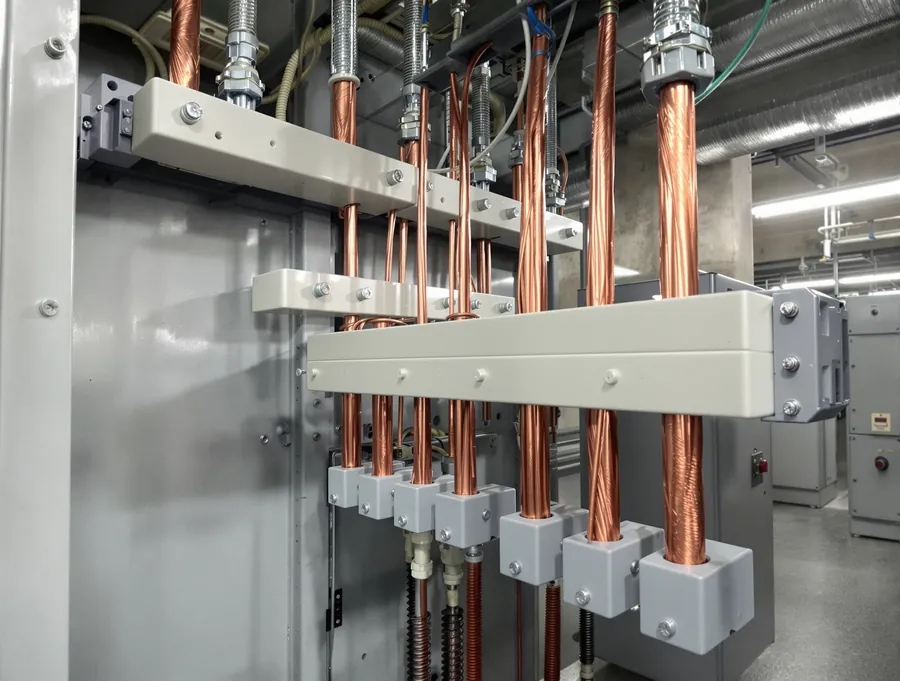

Busbars, supports and connectors we supply
A busbar run needs more than bar stock. We supply the solid copper bars, the flexible links that take up movement and vibration, and the supports and insulators that hold everything during a short circuit.
Send us the current, the bar size and the quantity. If the shape is special, laminated busbars can be cut, bent, twisted and drilled to your drawing before they ship.
- Rigid copper bars: 20–160 mm high, 4.5–10 mm thick, 1750–5800 mm long, 44 versions
- Prepunched copper bars: 1750 mm long, 25–125 mm high, 5 or 10 mm thick, 11 versions
- Isoflexx laminated busbars: 21.6–1200 mm², 2000 mm standard, 250–3000 mm custom lengths
- Ultraflexx flexible copper braid: 25–240 mm², 150–1000 mm in 50 mm steps, up to 1000 VAC / 1500 VDC
- Socomec insulated copper braids up to 1000 A, 220–800 mm long, 27 versions
- Busbar supports SB 44, SB 306, SB 7500, SB P 30 and SB C ER P for copper or aluminium bars
- Hexagonal insulators rated 500 VAC up to 2400 VAC in UL94 V0 insulating material
- Custom services on laminated busbars: cutting, bending, twisting, hole patterns and press welding
Specs and feedback from the field
“ValuAdd consistently delivers high-quality electrical components that meet our demanding industrial requirements. Their technical expertise is unmatched in the industry.”
“ValuAdd's deep knowledge of electrical components and their manufacturer relationships have been invaluable for our panel building projects. They consistently deliver the right solutions.”
“The team at ValuAdd provides exceptional support for component selection and system integration. Their manufacturer relationships ensure we get authentic, quality products.”
What happens after you ask
Send your specs
Share bar size, current rating, quantity and any panel drawings you already have.
We match the parts
Our team picks the right copper bar, flexible link, support or insulator and pulls the CAD files and datasheets.
You get your quote
We come back with pricing and availability for the full busbar package.
Frequently asked questions
How much does a busbar cost?
Pricing is quoted on request. Cost depends on the bar size, cross-section, length, any custom cutting or punching, and how many you need. Send your specs and we will price it.
What sizes of copper bar can I get?
Rigid copper bars come in 44 versions from 20 to 160 mm high, 4.5 to 10 mm thick and 1750 to 5800 mm long. Prepunched copper bars come in 11 versions, 1750 mm long, 25 to 125 mm high and 5 or 10 mm thick.
Can you supply custom lengths and hole patterns?
Yes. Isoflexx laminated busbars are made in custom lengths from 250 to 3000 mm, with cutting, bending, twisting, hole pattern insertion and press welded or tacked connections.
Do you also sell busbar supports and insulators?
Yes. We supply SB 44, SB 306, SB 7500, SB P 30 and SB C ER P supports for copper or aluminium bars, plus hexagonal insulators from 500 VAC to 2400 VAC. Supports are tested to hold busbars during a short circuit.
Where do you ship?
We serve the United States nationwide, with selected products also available in Canada, Europe and globally. Ask us about your location when you request a quote.
What ratings do the flexible busbars carry?
Ultraflexx flexible busbars work up to 1000 VAC and 1500 VDC, from -55°C to +125°C. Isoflexx laminated busbars run from -40°C to +105°C in the Classic version and up to +190°C in the Premium version.
Ready to price your busbars?
Send us the bar size, current rating and quantity. We will come back with a quote, plus CAD files and datasheets for your design.
