Strain Gage Electronics
Signal Conditioning Built for Strain Gage Measurement
Get the i200 AC carrier strain gage amplifier and the i100 bridge simulator, matched to your load cells and torque sensors by our engineers.

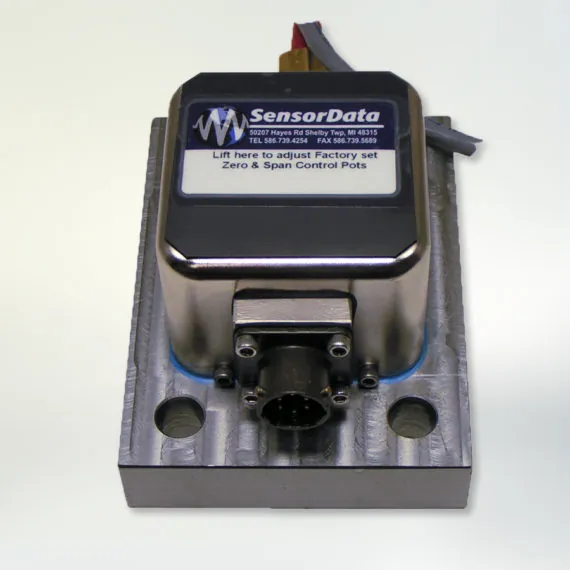

- i200 AC carrier conditioning for strain gage sensors
- i100 bridge simulator: ±0.03% accuracy, no power needed
- Free in-house calibration when supplied as a system
Designed and built in Shelby Township, Michigan since 1993.
Prefer to talk? Call +1 (586) 739-4254
Request Signal Conditioning Pricing
Tell us about your sensors and setup. An engineer will reply with a quote and recommendations.
Why engineers buy their electronics from us
Matched to your sensor
Our AC carrier and DC compatible electronics are built to work with our load cells and torque sensors, so the chain is right the first time.
Free calibration with a system
In-house calibration is free when the electronics are supplied with SensorData sensors as a complete system.
Lab-grade accuracy
The i100 bridge simulator holds ±0.03% accuracy with 6 ppm/F temperature stability and 0.0004 mV/V zero balance.
Talk to real engineers
Free technical consultation. Our team helps you pick the right conditioner, output and cabling for your application.
Portable and rugged
The i100 is pocket sized in a rugged anodized aluminum case, so it travels to the test cell or the field.
100% satisfaction guarantee
All standard products carry a 100% satisfaction guarantee with a 60-day return policy.

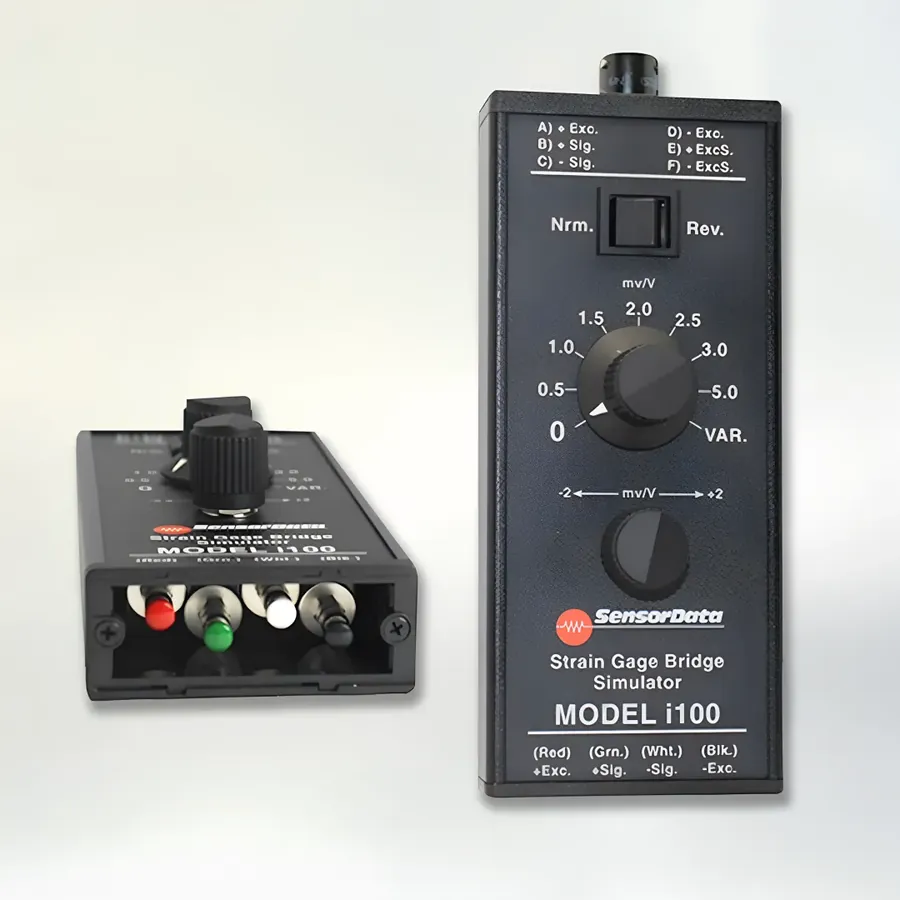

i200 conditioner and i100 bridge simulator
Strain gage sensors put out a few millivolts per volt. You need clean signal conditioning to turn that into a usable reading. SensorData builds the i200 AC carrier strain gage signal conditioning electronics for our rotary torque sensors, including the T258 and T260 high-speed models, and supports AC carrier or DC strain gage electronics across our force and multi-axis sensor lines.
The i100 Strain Gage Bridge Simulator gives you a known, repeatable mV/V input for developing, calibrating and troubleshooting conditioners, amplifiers, data loggers and complete measurement systems. It is completely passive, so no external power is required.
- i200: AC carrier strain gage signal conditioning electronics
- Required by T258 and T260 high-speed rotating torque sensors
- i100: 8 switch-selectable output steps from 0 to 5 mV/V
- i100: variable Vernier adjustment from 0 to 2 mV/V
- i100: true reverse polarity switch and gold plated internal contacts
- i100: 350-ohm equivalent bridge resistance, ±0.03% accuracy
- i100: 2 3/4 x 1 7/8 x 6 3/4 in, anodized aluminum case
- Connect by PT style connector or 4 color-coded spring-loaded test clips
- Works with AC carrier and DC strain gage signal conditioners
- Interconnecting cable assemblies and mating connectors available
Trusted by test and measurement teams
“Thank you very much! You were extremely helpful and responsive in a short amount of time. I believe we'll be doing business down the road. Thanks again”
What happens after you ask
You send the details
Tell us your sensor type, output, and whether you need AC carrier or DC electronics.
We review the application
An engineer checks the fit and answers questions about wiring, output and calibration at no cost.
You get a written quote
We send pricing, model details and a delivery schedule we commit to.
Frequently asked questions
How much does signal conditioning cost?
Pricing is quote-based. Cost depends on the model, options and cabling you need, so send your requirements and we will price it for you.
Will your electronics work with my existing sensors?
Our electronics are designed for strain gage bridge sensors and work with AC carrier or DC strain gage setups. Send us your sensor details and an engineer will confirm the fit before you buy.
Is calibration included?
In-house calibration is free when the electronics are supplied as part of a complete SensorData system. Calibration with customer-supplied electronics is available for a fee.
Does the i100 bridge simulator need a power supply?
No. The i100 is a completely passive design, so no external power is required. It offers 8 output steps from 0 to 5 mV/V plus a variable 0 to 2 mV/V adjustment.
Do you ship outside the United States?
Yes. We sell across the United States and internationally, including Europe and other global markets.
What if the product is not right for my application?
Standard products come with a 100% satisfaction guarantee and a 60-day return policy.
Get a quote on strain gage signal conditioning
Tell us what you are measuring and what sensors you use. Our engineers will recommend the right conditioner or simulator and send pricing.
- i200 AC carrier conditioning for strain gage sensors
- i100 bridge simulator: ±0.03% accuracy, no power needed
- Free in-house calibration when supplied as a system
Prefer to talk? Call +1 (586) 739-4254
