Fatigue-rated pancake & shear web cells
Pancake Load Cells Built for 100 Million Cycles
Low profile universal shear web designs from 200 lb to 500K lb, made and calibrated in Shelby Township, Michigan. Tell us your load and we will quote it.
- Guaranteed against fatigue failure for 100 million reversed cycles
- Low profile body deflects less than 0.002 inch under load
- Accuracy to 0.07% nonlinearity and hysteresis on F341-F347
Designing and building force sensors in Shelby Township, Michigan since 1993.
Prefer to talk? Call +1 (586) 739-4254
Quote my pancake load cell
Send your capacity, mounting and application. An engineer reviews it and replies with the right model and pricing.
Built for hard test work
Fatigue rated to 100 million cycles
Our shear web design is guaranteed against fatigue failure for 100 million fully reversed cycles, so it keeps reading through long life tests.
Low profile, high stiffness
Deflection stays under 0.002 inch at full load. Your fixture stays rigid and the cell fits where taller sensors will not.
Capacities from 200 lb to 500K lb
Standard models cover small bench work up to heavy press and mill loads, with pancake, canister, hollow and threaded actuator styles.
Custom designs when standard will not fit
We design, engineer and build custom capacities, mounts and configurations in house, with over 25 years of sensor experience behind it.
Calibration and certification in house
We calibrate here and issue calibration certificates with traceable measurement data. Recalibration is available later too.
100% satisfaction guarantee
Standard sensors come with a 60-day return policy, warranty coverage, and free calibration on certain models for the first 4 years.

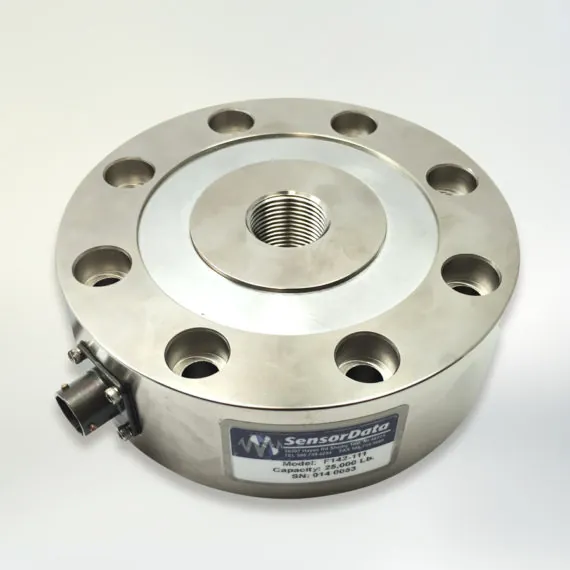

Pancake load cells for tension, compression and fatigue testing
A pancake load cell is a low profile disc that measures force in a tight space. Our universal shear web design holds deflection under 0.002 inch, so your fixture stays stiff and your readings stay repeatable. Bodies are SAE 4340 alloy steel with a satin nickel finish, and they resist bending and off-center loading with minimal crosstalk.
Fatigue rated models are guaranteed against fatigue failure for 100 million fully reversed cycles. That suits life cycle testing, hydraulic actuator loads and structural work where a general purpose cell gives out early. If no standard model fits, we design and build a custom cell for your application.
- F140, F141, F142: fatigue rated low profile universal shear web cells
- F312: capacities of 200, 500, 1K, 2K and 3K lb with deflection under 0.002 inch

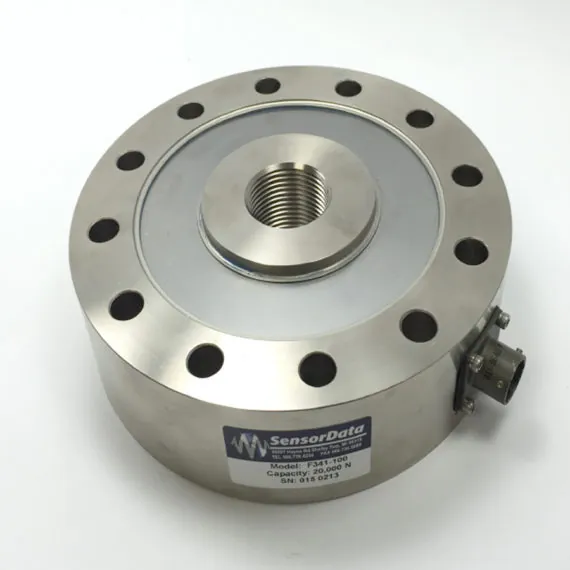

- F341 to F347: 5K, 10K, 20K, 50K, 100K, 250K and 500K lb at 0.07% accuracy
- F200 compression canister: 5K to 50K lb, under 2.5 inch diameter, 3.5 inch tall
- F502 hollow compression: 4 inch diameter, 2 inch height, 5K to 100K lb
- F654 hydraulic actuator cell: 1-14 UNF threads, 5K to 25K lb
- Optional tension plates, spherical load buttons and cable assemblies; mating connectors supplied
- Works with AC carrier or DC strain gage signal conditioning electronics
- Used on material testing machines, airframe fixtures, press calibration, mills and civil engineering projects
Why engineers pick SensorData
“Thank you very much! You were extremely helpful and responsive in a short amount of time. I believe we'll be doing business down the road. Thanks again”
What happens after you ask
Send your load details
Give us capacity, load direction, mounting space and what you are testing. Drawings or photos help.
Talk with an engineer
We recommend a standard model or a custom design, then send pricing and a delivery schedule for your approval.
We build, calibrate and ship
Your cell is built, calibrated in house and shipped with its calibration certificate and mating connector.
Frequently asked questions
How much does a pancake load cell cost?
Pricing is quote based. Cost depends on capacity, accuracy, mounting style and options like tension plates or cable assemblies. Send your details and we will price it.
Can you build a custom capacity or mounting?
Yes. We design, engineer and manufacture custom force sensors in house for non-standard capacities and configurations. Tell us the application and an engineer will work it through with you.
Can these cells measure tension as well as compression?
Our universal shear web models are made for both load directions, and optional tension plates and spherical load buttons are available. Tell us how the load is applied and we will confirm the right setup.
What does fatigue rated mean?
Fatigue rated cells are guaranteed against fatigue failure for 100 million fully reversed cycles, which is why they hold up in component life cycle and test-to-failure work.
Do you calibrate and certify the load cell?
Yes. We calibrate in house and issue calibration certificates with traceable measurement data. Calibration with customer-supplied electronics is available for a fee, and recalibration service is offered later in the cell's life.
What if the sensor is not right for my test?
Standard sensors carry a 100% satisfaction guarantee with a 60-day return policy, plus warranty coverage and free repair or replacement parts at our discretion.
Do you ship outside the United States?
Yes. The United States is our primary market, and we also sell to customers in Europe and other countries.
