Bridge Simulators & Sensor Calibration
Load Cell Tester Tools: Bridge Simulator & Calibration
Check load cells, signal conditioners and data loggers with the Model i100 bridge simulator, plus in-house calibration from SensorData Technologies.
- Model i100 simulator: 0.03% accuracy, no external power
- 8 switch steps from 0 to 5 mV/V, plus 0 to 2 mV/V fine adjust
- In-house calibration with certificates and traceable data
Designing and building precision sensors in Shelby Township, Michigan since 1993
Prefer to talk? Call +1 (586) 739-4254
Get load cell tester pricing
Tell us what you need to test. An engineer reviews your application and replies with options.
Why this is the tester test engineers reach for
Know where the fault is
The i100 feeds a known mV/V signal into your instrument. You can tell in minutes whether the problem is the load cell or the electronics.
Passive and pocket sized
No external power needed. The rugged anodized aluminum case measures 2 3/4 x 1 7/8 x 6 3/4 inches, so it travels to the test floor with you.
Calibration under one roof
We calibrate and recalibrate load cells, force transducers and torque sensors in house, and issue calibration certificates with traceable data.
Backed by a guarantee
Standard sensors carry a 100% satisfaction guarantee with a 60-day return policy, plus warranty options.
Free engineering help
Talk with the people who design the sensors. Consultation on your measurement setup costs nothing.
What you get with the Model i100 bridge simulator
A load cell tester is only as good as the signal it puts out. The Model i100 strain gage bridge simulator is completely passive, needs no external power, and simulates a 350-ohm bridge with 8 switch selectable output steps from 0 to 5 mV/V.

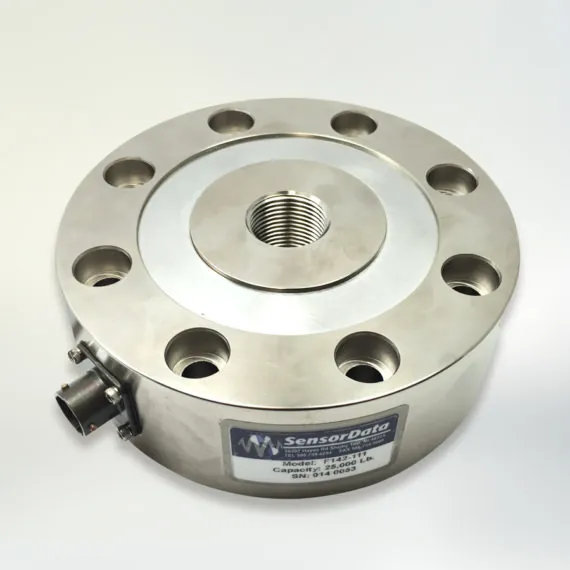

If the sensor itself is what needs checking, we calibrate and recalibrate load cells, force transducers and torque sensors in house and issue certificates. If you need a replacement sensor, our fatigue-rated load cells are guaranteed against fatigue failure for 100 million fully reversed cycles.
- Accuracy of plus or minus 0.03% with 6 ppm/F temperature stability
- Zero balance of 0.0004 mV/V and 350-ohm equivalent bridge resistance
- Variable adjustment from 0 to 2 mV/V using a Vernier knob
- True reverse polarity switch for full two-way testing
- PT style connector or 4 color-coded spring-loaded test clips
- Gold plated internal contacts in an anodized aluminum case
- Works with AC carrier and DC strain gage signal conditioning electronics
- Free in-house calibration when purchased as part of a system
Proof you can check
“Thank you very much! You were extremely helpful and responsive in a short amount of time. I believe we'll be doing business down the road. Thanks again”
What happens after you send the form
Send your details
Tell us what you test, the sensor output you work with, and the electronics in your setup.
Talk with an engineer
We review your application at no cost and suggest the simulator, calibration service or sensor that fits.
Get your quote
You receive pricing and a delivery schedule. Orders ship from our Shelby Township, Michigan facility across the US and worldwide.
Frequently asked questions
How much does the Model i100 bridge simulator cost?
Pricing is quote based, not off the shelf. Send the form with your application and we will send pricing and a delivery schedule.
Does the i100 need a power supply or batteries?
No. The design is completely passive, so no external power is required. It connects by PT style connector or 4 color-coded spring-loaded test clips.
Can you calibrate load cells I already own?
Yes. We provide calibration and recalibration with calibration certificates. In-house calibration is free with SensorData electronics, or available for a fee with customer-supplied electronics.
Will it work with my signal conditioner?
The i100 is compatible with AC carrier and DC strain gage signal conditioner electronics. Tell us your model and we will confirm before you order.
What if it is not right for my setup?
All standard sensors come with a 100% satisfaction guarantee and a 60-day return policy.
Do you ship outside the United States?
Yes. The US is our primary market and we also sell to Europe and customers worldwide.
Get the right load cell tester for your bench
Send us your application. An engineer will confirm the simulator, calibration service or sensor you need and send pricing with a delivery schedule.
- Model i100 simulator: 0.03% accuracy, no external power
- 8 switch steps from 0 to 5 mV/V, plus 0 to 2 mV/V fine adjust
- In-house calibration with certificates and traceable data
Prefer to talk? Call +1 (586) 739-4254
