Compression Load Cells & Force Sensors
Compression Force Sensor Built for Press and Test Loads
SensorData designs and builds compression load cells in Michigan. Low deflection, high stiffness, and fatigue-rated models for press calibration and test rigs.
- Capacities from 200 lb to 500K lb, plus custom builds
- Fatigue rated for 100 million fully reversed cycles
- Deflection under 0.002 inch for stiff, stable press setups
Designing and building force and torque sensors in Shelby Township, MI since 1993.
Prefer to talk? Call +1 (586) 739-4254
Request a Compression Sensor Quote
Tell us your load range and mounting. An engineer will review your application and reply with options.
Why engineers choose our compression load cells
Fatigue rated for long test runs
Our shear web design is guaranteed against fatigue failure for 100 million fully reversed cycles, so cycling rigs keep running.
Stiff, low-profile design
Deflection stays under 0.002 inch on our low-profile models. That keeps press and load frame geometry stable under load.
Accuracy you can trust
Nonlinearity and hysteresis as low as 0.07% on F341 through F347 models, with minimal crosstalk from off-center loading.
Built to take abuse
SAE 4340 alloy steel bodies with a satin nickel finish stand up to shop and test cell conditions.
Custom capacities and shapes
Need a hollow center, a special thread, or a capacity we do not list? We design, engineer and build custom sensors in house.
Backed by a satisfaction guarantee
Standard sensors carry a 100% satisfaction guarantee with a 60-day return policy.
Compression force sensors and hydraulic press load cells
Compression load cells sit in the load path of a press, actuator or test frame and turn applied force into a clean strain gage signal. We build canister, hollow, low-profile shear web and in-line actuator styles so you can match the sensor to your fixture instead of reworking the fixture.
Every model works with AC carrier or DC strain gage signal conditioning electronics, and mating connectors ship with the sensor. Cable assemblies, tension plates and spherical load buttons are available as options.

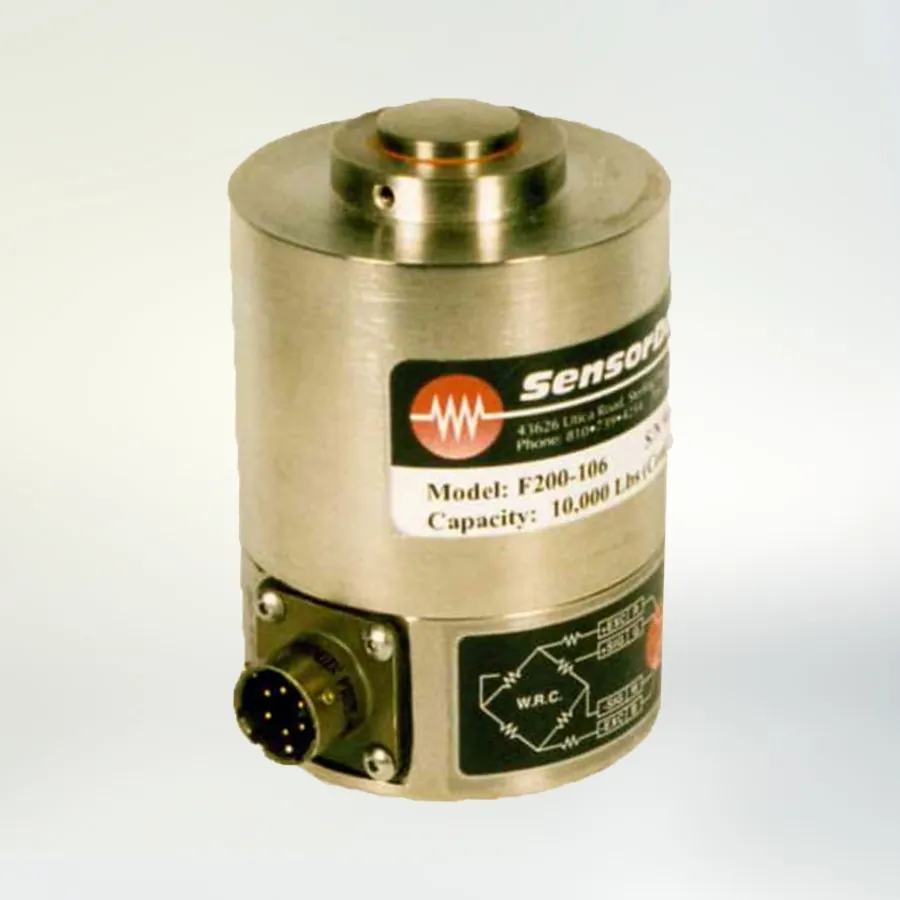

- F200 canister compression load cell: 5K, 10K, 20K and 50K lb, under 2.5 in diameter, 3.5 in tall
- F502 hollow compression load cell: 5K to 100K lb, 2 in tall, 4 in diameter, 0.15% nonlinearity and hysteresis
- F654 hydraulic actuator load cell: 5K to 25K lb with 1-14 UNF threads for in-line mounting
- F341 to F347 low profile shear web: 5K to 500K lb at 0.07% accuracy
- F312 low profile shear web: 200, 500, 1K, 2K and 3K lb capacities
- F140 series low profile cells with deflection under 0.002 inch
- All bodies machined from SAE 4340 alloy steel with satin nickel finish
- In-house calibration, recalibration and calibration certificates
A specialist sensor maker, not a catalog reseller
“Thank you very much! You were extremely helpful and responsive in a short amount of time. I believe we'll be doing business down the road. Thanks again”
What happens after you send your request
You share the application
Give us your peak load, mounting style, space limits and the electronics you already use.
We match a sensor
An engineer recommends a standard model or a custom design, with specs and options for your review.
You get a written quote
We send pricing and a delivery schedule so you can compare and order with no guesswork.
Frequently asked questions
How much does a compression force sensor cost?
Pricing is quote-based. Cost depends on capacity, style, accuracy, connectors and any custom features, so tell us your application and we will quote it.
Which load cell fits a hydraulic press or actuator?
The F654 mounts in line with hydraulic actuators using 1-14 UNF threads in 5K to 25K lb. For platen or ram loading, the F200 canister and F502 hollow compression cells cover 5K to 100K lb.
Can you build a capacity or size that is not listed?
Yes. We design, engineer and manufacture custom sensors in house, including non-standard capacities and configurations.
Do the sensors come calibrated?
We provide in-house calibration and calibration certificates. Calibration is free with SensorData electronics; with customer-supplied electronics it is available for a fee.
What electronics do I need?
Our force sensors work with AC carrier or DC strain gage signal conditioning electronics. We also offer the i200 AC carrier conditioner and the i100 bridge simulator for checkout.
Do you ship outside the United States?
Yes. We sell across the United States and internationally, including Europe and other global markets.
Get pricing on your compression load cell
Send your load range, mounting and application. Our engineers will recommend the right compression force sensor and quote it with a delivery schedule.
- Capacities from 200 lb to 500K lb, plus custom builds
- Fatigue rated for 100 million fully reversed cycles
- Deflection under 0.002 inch for stiff, stable press setups
Prefer to talk? Call +1 (586) 739-4254
