STM Tips for Atomic-Scale Imaging: Pt-Ir and Tungsten
Etched Pt-Ir, insulated Pt-Ir and tungsten probe tips for scanning tunneling microscopy, from the team that built Molecular Imaging AFM and STM systems.
- Etched Pt-Ir tips with a sharp apex for atomic-scale imaging
- Insulated Pt-Ir PT-10 tips rated under 70 pA for low-current work
- Tips, nose cones and STM parts from one US supplier
Supplied by the revived Molecular Imaging team in Bingham Farms, Michigan
Prefer to talk? Call 1-888-644-0389
Request STM tip pricing
Tell us your STM model, tip type and quantity. We will reply with a quote and help you pick the right tip.
Why researchers buy their STM tips here
Three tip materials
Choose the tip that fits your measurement: etched Pt-Ir, insulated Pt-Ir or tungsten probe tips.
Low-current option
The insulated Pt-Ir PT-10 tip is built for reduced tunneling current, specified at less than 70 pA.
Sharp etched apex

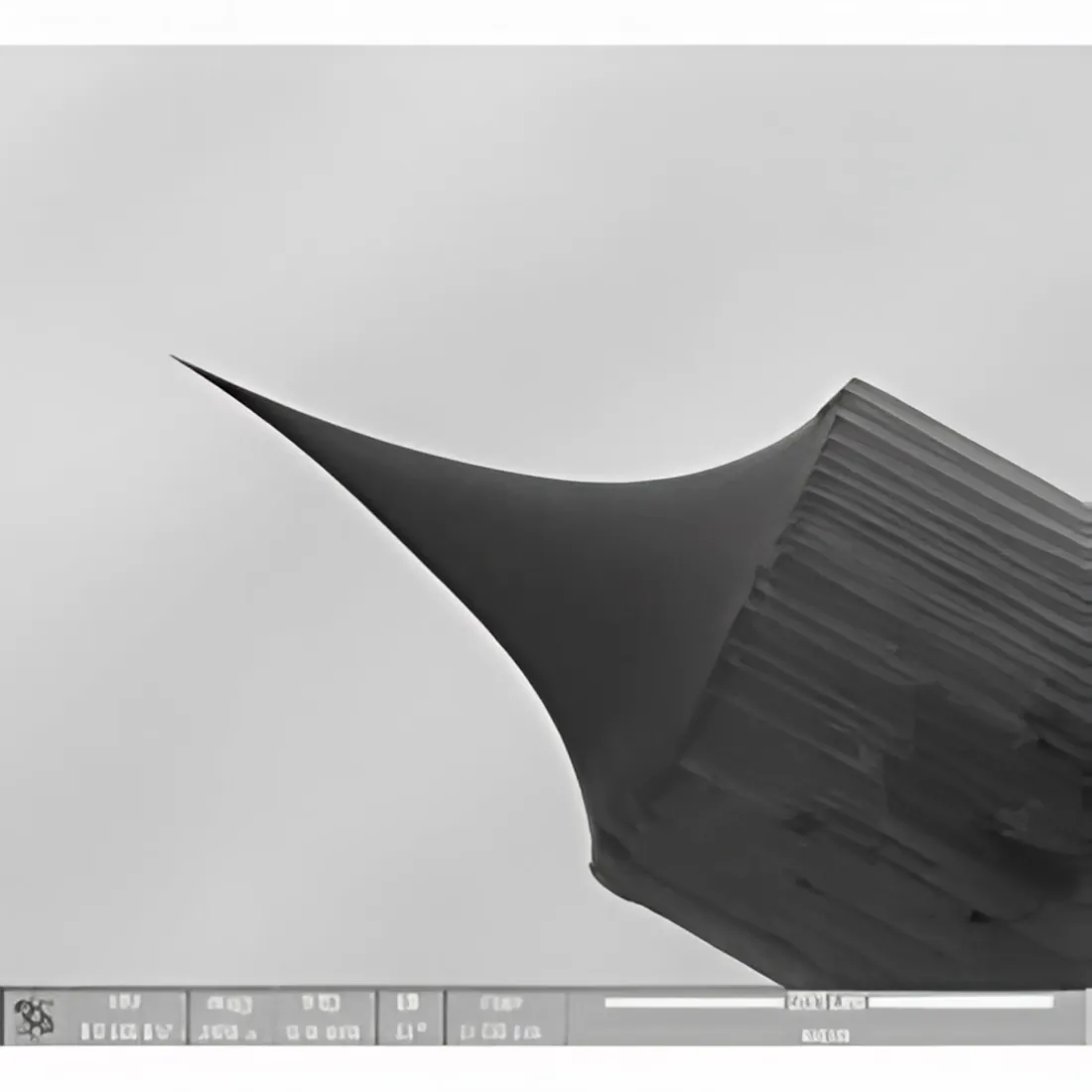

Etched Pt-Ir tips have a fine apex for atomic-scale surface imaging and spectroscopic work.
One source for STM parts
Order tips with STM nose cones, scanner components, sample holders and calibration substrates.
Help from the original team
Former Molecular Imaging engineers answer your questions, backed by ZoomAFM fast online service.

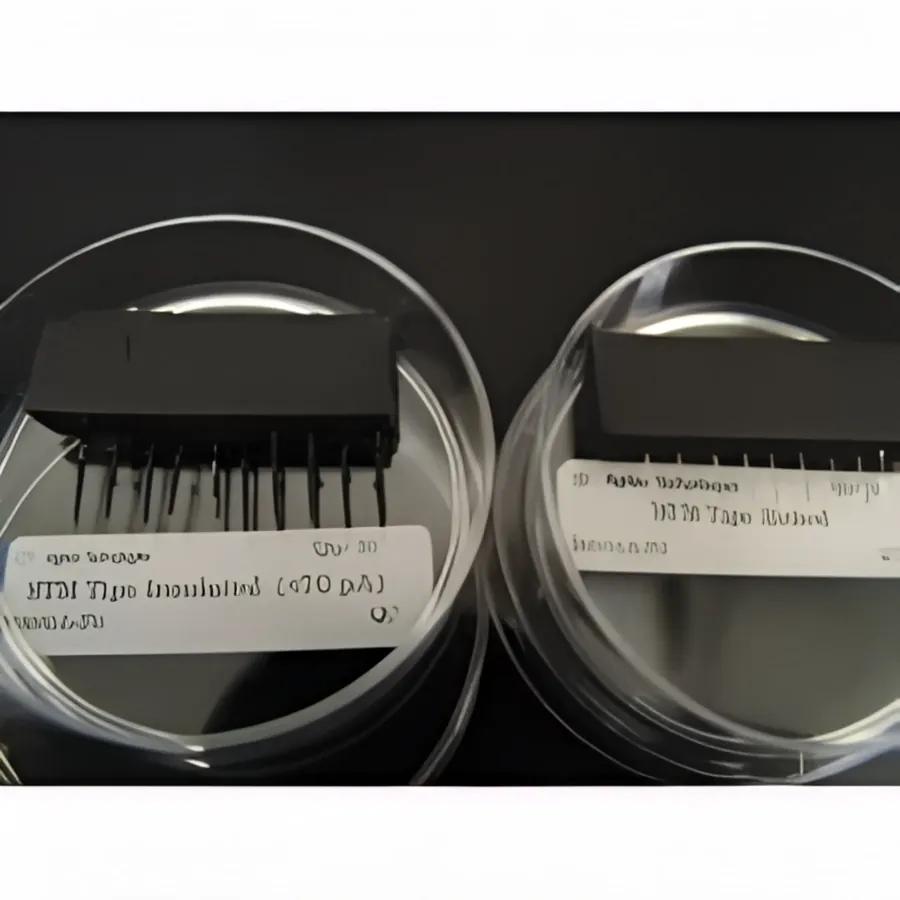

STM tips and probes we supply
Molecular Imaging makes tips for scanning tunneling microscopy and the systems they run on. The etched platinum-iridium PT-10 tip has a sharp etched apex for atomic-scale surface imaging and spectroscopic characterization. The insulated Pt-Ir PT-10 tip adds an insulated design that reduces current flow, specified at less than 70 pA, for sensitive and in-liquid work.
If you need more than tips, we also supply the STM nose cone for the PicoPlus 5500 Series, STM scanner components, electrochemistry cells and calibration substrates, plus ZoomAFM repair and service for Agilent 5500 and 4500 AFM and STM systems.
- STM Etched PT-LR Tip PT-10: platinum-iridium, etched geometry with a sharp apex
- STM Insulated PT-LR Tip PT-10: insulated Pt-Ir, current less than 70 pA, listed at $10.00
- Tungsten probe tips for scanning tunneling microscopy
- STM nose cone for PicoPlus AFM/STM 5500 Series, quick to interchange
- STM scanner components with motor assembly and encoder feedback
- 4500 PicoSTM system for atomic-resolution surface analysis
- Electrochemistry cells, salt bridge and micro reference electrode for in-situ STM
- Substrates for STM work: mica, gold thin film on mica, gold-coated silicon wafers
What happens after you ask
Send your details
Tell us your STM model, the tip type you use and how many you need.
We confirm the fit
Our team checks the right tip for your system and application, and suggests options if you are unsure.
You get a quote
We send pricing and answer questions by email or phone at 1-888-644-0389.
Frequently asked questions
How much do STM tips cost?
The STM Insulated PT-LR Tip PT-10 is listed at $10.00. Etched Pt-Ir and tungsten tips are priced on request. Send us the tip type and quantity and we will quote it.
What is the difference between etched and insulated Pt-Ir tips?
Etched Pt-Ir tips have a sharp etched apex for atomic-scale imaging and spectroscopic characterization. Insulated Pt-Ir tips use an insulated design that reduces current flow, specified at less than 70 pA, for specialized low-current STM work.
Will these tips work with my STM system?
Our tips are designed for scanning tunneling microscopy, including Molecular Imaging and Agilent systems such as the 4500 PicoSTM and the 5500 PicoPlus AFM+STM. Tell us your model in the form and we will confirm the fit before you order.
Can I order other STM parts at the same time?
Yes. We also supply STM nose cones, STM scanner components, probe and cantilever holders, sample holders, calibration substrates and electrochemistry cells for in-situ STM.
Do you ship outside the United States?
We are based in Bingham Farms, Michigan and serve labs across the United States, and our products and support are also offered to the global research community. Note your location in the form and we will confirm what we can do.
Do you service STM systems too?
Yes. ZoomAFM provides repair, preventive maintenance, calibration, upgrades and remote online support for Agilent 5500 and 4500 AFM and STM systems.
Get pricing on your STM tips
Send your STM model, tip type and quantity. We will reply with a quote and help you choose between etched Pt-Ir, insulated Pt-Ir and tungsten tips.
