AFM Calibration Standards
Step Height Standard for Accurate AFM Z Calibration
Check the vertical accuracy of your AFM or SPM with a defined step-height reference. Made by Molecular Imaging. Ask us for pricing.
- Defined step features for repeatable Z-axis calibration
- Also 500 nm gratings, dopant and SMM capacitance standards
- Backed by technical support and ZoomAFM online service
Made by Molecular Imaging, the AFM team behind PicoPlus and PicoView software.
Prefer to talk? Call 1-888-644-0389
Request step height standard pricing
Tell us your AFM model and what you need to calibrate. We will reply with pricing and options.
Why buy your calibration standards here
Trust your height numbers
Precisely defined step-height features give you a known reference, so you can verify your AFM's vertical measurement accuracy.
One source for calibration
Step height standards, periodic gratings, dopant standards and an SMM capacitance standard, all in one place.
Built by AFM people
Molecular Imaging was revived by former employees after Keysight left the AFM market in 2018. They know these instruments.
Support after the sale
Technical support, ZoomAFM fast online service, and downloadable manuals and user guides.
Made for routine checks
Use the standard for instrument performance validation, QC of AFM measurements and nanometrology work.
What the step height standard does

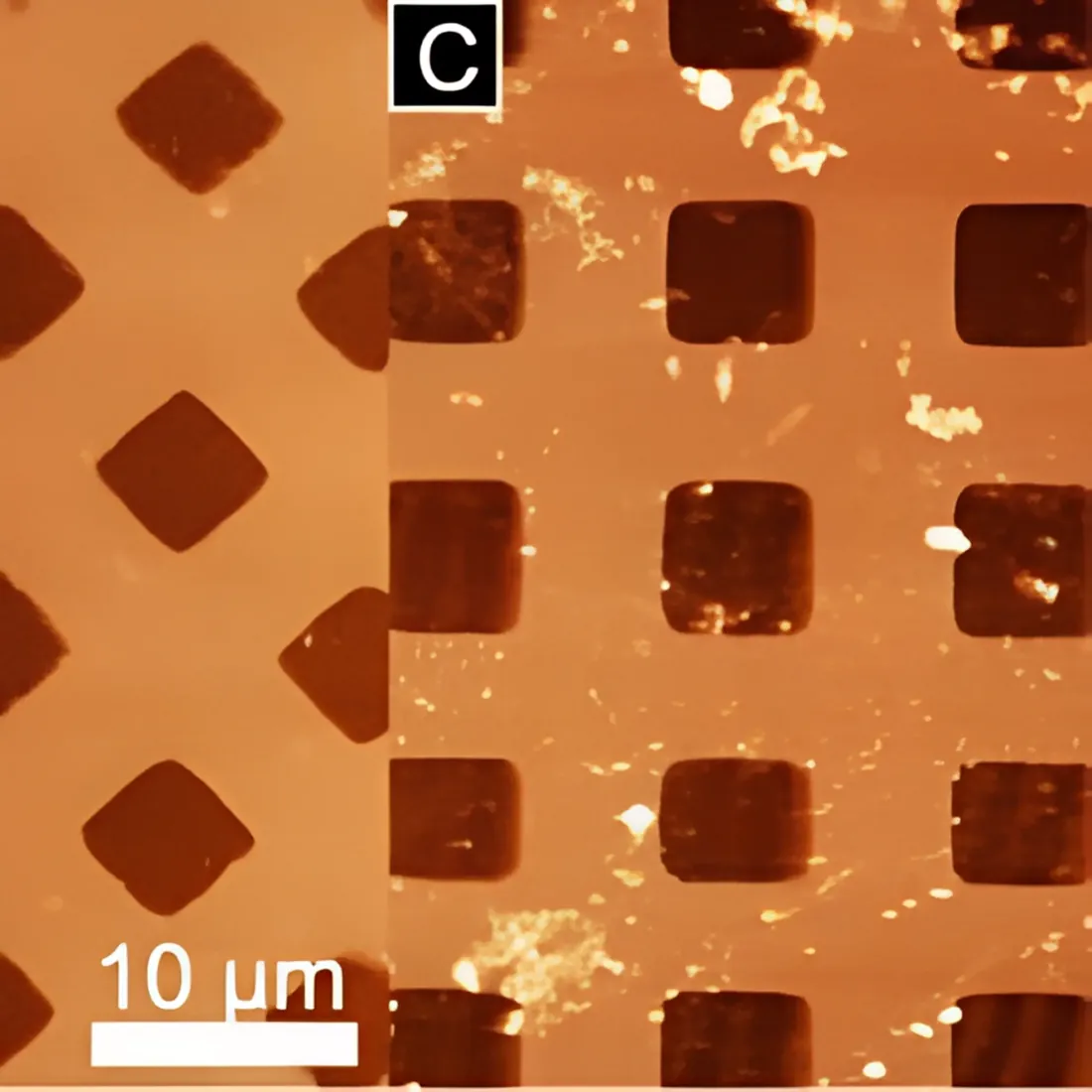

A step height standard carries step features of a known height. You scan it, compare the measured height to the reference, and adjust your AFM so your Z-axis data is right. It is a simple way to prove your instrument is still in spec before important measurements.
We also supply lateral references, so you can cover both axes. Our AFM calibration sample uses a 500 nm periodic grating for X-Y checks, and dopant and capacitance standards are available for scanning capacitance and scanning microwave microscopy.
- Precisely defined step-height features for vertical (Z-axis) calibration
- Verifies and validates AFM height measurement accuracy
- Repeatable reference for routine instrument performance checks
- AFM Calibration Sample with 500 nm periodic grating for lateral checks
- N-type and P-type dopant calibration standards for SCM, SMM and SSRM
- SMM capacitance calibration standard for nanoscale capacitance work
- Mica substrates and gold thin film on mica for calibration and roughness studies
- Technical manuals, user guides and service documents available to download
What happens after you ask
You send the details
Share your AFM or SPM model and the calibration you need to run, vertical, lateral or both.
We match the standard
Our team confirms the right step height standard and any grating or dopant standards that fit your work.
You get pricing
We send pricing and ordering details, with technical support and ZoomAFM online help available after you buy.
Frequently asked questions
How much does a step height standard cost?
Pricing is available on request. No price is published for this item. Send your AFM model and the standards you need, and we will reply with pricing.
Will it work with my AFM?
Our step height standards are made for atomic force microscopy instruments. Tell us the make and model you run and we will confirm the right format before you order.
Do you sell lateral (X-Y) standards too?
Yes. We offer periodic grating standards, including a 500 nm grating calibration sample, for lateral calibration, alongside step-height standards for vertical calibration.
Do you have standards for dopant profiling?
Yes. N-type and P-type dopant calibration standards and an SMM capacitance calibration standard are available for scanning capacitance and scanning microwave microscopy.
Where do you ship, and how fast?
We serve the United States nationwide and support the wider research community. Shipping methods and delivery times are not published, so ask in your request and we will confirm them with your quote.
Can you also service or calibrate my AFM?
Yes. ZoomAFM provides repair, maintenance, calibration and upgrades for Agilent 5500, Agilent 4500, AFM and STM systems, plus remote technical support online.
Get pricing on your step height standard
Tell us your AFM model and which standards you need. Our team will send pricing and confirm the right format. You can also call 1-888-644-0389.
