AFM & STM Systems Built by Molecular Imaging
Atomic Force Microscope Systems for Research Labs
Modular AFM/STM platforms, probes, liquid cells and accessories from the team behind the original Molecular Imaging AFM line. Built and supported in the US.
- Scan ranges from 9 µm x 9 µm up to 90 µm x 90 µm
- Swap nose cones for AFM, STM, CSAFM, KPFM, EFM and MFM
- Image in air, liquid, acid, base or controlled gas
Revived by former Molecular Imaging staff after Keysight exited AFM in 2018.
Prefer to talk? Call 1-888-644-0389
Request AFM pricing and specs
Tell us about your samples and modes. Our AFM team will send a configuration and quote.
Why labs choose Molecular Imaging AFM
One platform, many techniques
Quick-change nose cones let you move between AFM, STM, conductive AFM, tapping, KPFM, EFM and MFM on the same system.
Built for liquid work
A wide range of liquid cells covers aqueous, acid, base and organic solvent imaging, plus flow-through buffer exchange.
Control your environment
The Environmental Isolation Chamber controls humidity, temperature, low oxygen and gas. Sample stages run -30°C to 250°C.
People who know these instruments
The team includes former Molecular Imaging engineers and application specialists, with Dr. Stuart Lindsay as academic advisor.
Service after the sale
ZoomAFM offers repair, maintenance, calibration, upgrades and remote online support for 5500 and 4500 systems.
Configured around your experiment
We build custom configurations, accessories and spectroscopy scripts with your research group.

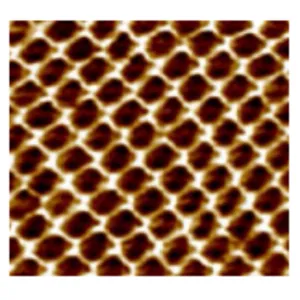

AFM systems, scanners and accessories
Molecular Imaging designs modular atomic force microscopes around a pendulum multipurpose scanner in a top-down layout. Open optical and video access lets you watch the sample and align the laser while you scan. The lightweight rigid mechanical loop keeps noise low.
You can start with the system you need today and add modes later. Nose cones, scanners, probes, liquid cells and sample stages are all interchangeable, so one instrument can serve many users in a shared facility.
- 5500 PicoPlus AFM+STM: AFM, STM, CSAFM, tapping, KPFM, EFM and MFM modes
- 5420 PicoAFM: modular AFM with 9 µm to 90 µm scan ranges and larger sample support
- 5500 ILM PicoPlus BioAFM: integrates with an inverted light microscope, sub-angstrom lateral and 0.2 nm vertical resolution
- 4500 PicoSTM: scanning tunneling microscope for atomic-resolution surface analysis
- Pendulum multipurpose scanners in 9 µm and 90 µm ranges, plus closed-loop Z and X-Y-Z metrology scanners
- Nose cones for standard AFM, STM, MAC Mode, conductive AFM and SECM
- Cantilevers and probes for contact, tapping, liquid, conductive, MFM and diamond indentation work
- PicoView control and data acquisition software, calibration standards and mica or gold-on-mica substrates
What happens after you ask
Tell us about your samples
Share your samples, imaging modes and environment, in air, liquid or controlled gas.
We map a configuration
Our team matches a system, scanner, nose cones and cells to your experiments.
You get a written quote
We send pricing and specs, then answer questions about install and training.
Frequently asked questions
How much does an atomic force microscope cost?
Pricing depends on the system, scanner range, nose cones, cells and accessories you choose. Pricing is available on request, so send us your application and we will quote your exact configuration.
Can I add modes later?
Yes. The systems are modular. Nose cones swap quickly for AFM, STM, MAC Mode, conductive AFM and SECM, and scanners and sample stages are interchangeable.
Do you support imaging in liquid?
Yes. We offer 1-inch, mini, PTFE, demountable, disposable PDMS bio, contact lens and fiber liquid cells, plus 9 mm and 18 mm flow-through cells for buffer exchange.
Do you sell probes and parts separately?
Yes. We run a web store for cantilevers, STM tips, liquid cells, sample plates, calibration standards and substrates. Our cantilevers work with all major brand AFM systems.
Do you service older Agilent or Molecular Imaging systems?
Yes. ZoomAFM provides diagnosis, repair, preventive maintenance, calibration, upgrades and remote online support for Agilent 5500 and 4500 AFM and STM systems.
Where do you ship and support?
We are based in Bingham Farms, Michigan and serve the United States nationwide, with products and support marketed to the global research community.
Get pricing for your atomic force microscope
Send us your samples, modes and budget window. We will put together a configuration and quote for your lab.
