Liquid Filter Bags & Bag Housings
Bag Filter for Liquid Filtration, Sized to Your Process
Felt, mesh and meltblown filter bags from 0.5 to 1500 micron, plus single-bag and multi-bag housings. Tell us your flow and fluid and we will quote it.
- Micron ratings from 0.5 to 1500 for fine or bulk removal
- Housings for #1, #2, #3 and #4 standard bags
- Oil Magnet bags pull oil out of process water and coolant
Complete filtration line, from HVAC filters to final membrane filtration.
Prefer to talk? Call 732.329.2500
Request Bag Filter Pricing
Send us your fluid, flow rate and bag size. Our team will match the right bag and housing and send a quote.
Why buyers source bag filters from us
One source for bags and housings
Get the bag, the housing and the gauges from the same supplier, so parts fit the first time.
Media matched to your fluid
Felt, monofilament mesh, multifilament mesh and meltblown polypropylene in polyester, nylon, Nomex and Teflon.
Less fiber migration
Welded seams and glazed or singed finishes help keep fibers out of your filtered product.
Oil removal options
Oil Magnet OS-XL, OS-16, OS-32 and OSI bags pull oil from wastewater, coolant and E-Coat systems.
Fewer part numbers to manage
Filter consolidation and filter process analysis help cut the number of filters you stock.
Just-in-time stocking
Set up a stocking arrangement so bags are on the shelf when your crew needs them.
Filter bags and bag housings for liquid service
A bag filter is a simple way to pull solids out of a liquid line at high flow. The bag drops into a housing basket, the liquid flows inside to out, and your crew swaps the bag when the pressure drop climbs. We supply both halves of that system: the bags and the housing they sit in.
Bags come with ring tops, plastic flange tops with handles, drawstring or tie-on tops, or blank tops for systems without a standard housing. Housings run from small Miniline units up to MAXILINE multi-bag vessels holding 24 bags.

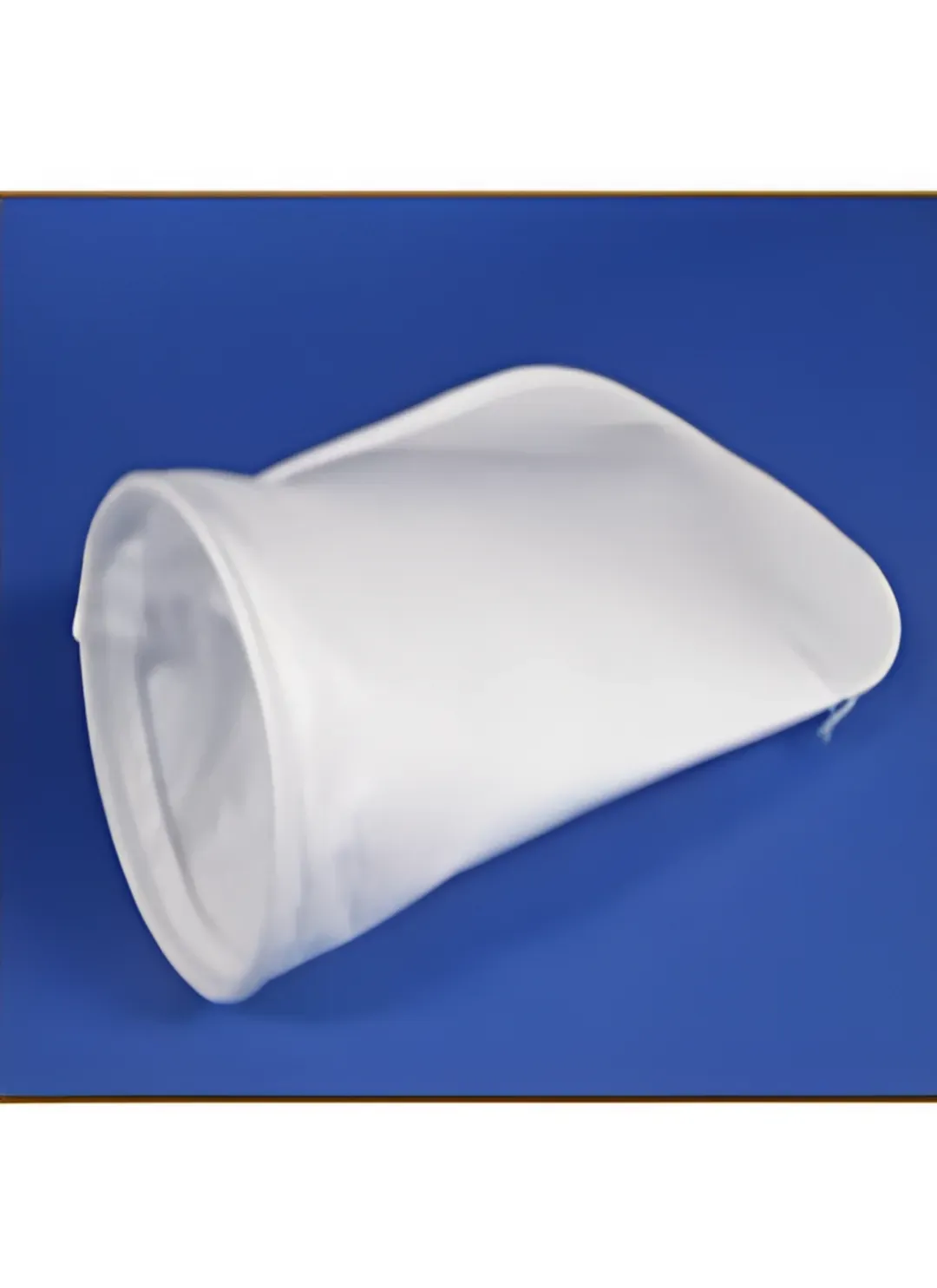

- Felt bags: 1 to 200 micron in polyester, polypropylene, nylon, Nomex and Teflon
- Monofilament mesh: 1 to 1200 micron, usually nylon; multifilament mesh: 75 to 1500 micron
- POMB, POMA and POMX Ultra meltblown polypropylene bags: 0.5 to 200 micron
- Oil Magnet bags: OS-XL 100-400 micron, OS-16 1-100 micron, OS-32 1-50 micron, plus OSI floating inserts

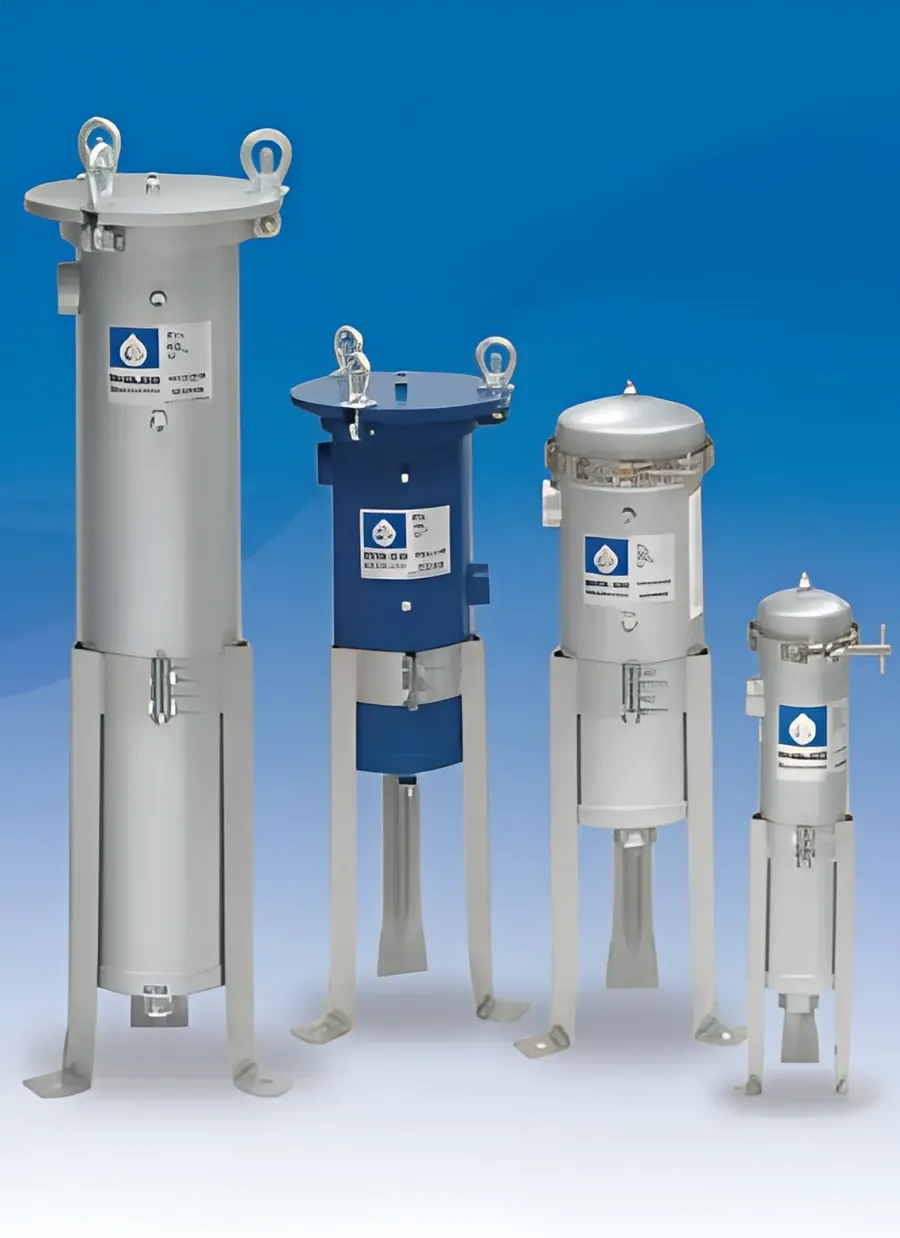

- Single-bag housings: Topline, Sideline, Flowline, Ecoline, Miniline, Polyline and BF Series for bag sizes #1 through #4
- Materials include 316L and 304L stainless steel, carbon steel, and non-metallic PVC, CPVC, PPL and PVDF
- Topline and Sideline #1 and #2 designs available with ASME Code UM Stamp; Topline carries a five year warranty
- Multi-bag housings: BFS, PROLINE 100 HE/SE and MAXILINE VMBF/MBF/HD, 2 to 24 bags, with MAXILINE HD offering an ASME U Code Stamp
Filtration built for demanding plants
“The staff and owner of fps were easy to work with and very knowledgeable. I highly recommend this company.”
What happens after you send the form
We review your application
Tell us the liquid, flow rate, micron target and current bag size. We look at what you run today.
We match bag and housing
Our team recommends the media, micron rating, top style and housing series that fit your system.
You get a written quote
Pricing is quote-based. We send pricing and spec sheets so you can compare and order.
Frequently asked questions
How much does a bag filter cost?
Pricing is available on request. Cost depends on the media, micron rating, bag size and quantity, and on the housing material and bag count. Send your details and we will quote it.
Which micron rating should I pick?
It depends on the particle you need to remove. Felt runs 1 to 200 micron, monofilament mesh 1 to 1200 micron, multifilament mesh 75 to 1500 micron, and meltblown POMB/POMA bags go down to 0.5 micron. We have rating charts to help you choose.
Will your bags fit my existing housing?
Bags are made in industry standard #1, #2, #3 and #4 sizes with ring, flange, drawstring, tie-on or blank tops. Tell us your housing make and bag size and we will match it.
Do you have housings that meet pressure vessel codes?
Yes. Topline and Sideline #1 and #2 designs are available with an ASME Code UM Stamp, and the MAXILINE HD multi-bag series is available with an ASME U Code Stamp.
Can you help with oil in our process water?
Yes. The Oil Magnet series is built for oil removal. OS-XL handles bulk visible oil at high flow, OS-16 suits E-Coat systems, OS-32 goes to 1 micron, and OSI floating inserts adsorb surface oil.
Do you ship nationwide?
We serve customers across the United States, with some products available internationally. Ask about a stocking arrangement for just-in-time delivery on repeat items.
Get pricing on your bag filter setup
Send your fluid, flow rate, micron target and bag size. We will match the right bag and housing and send a quote.
- Micron ratings from 0.5 to 1500 for fine or bulk removal
- Housings for #1, #2, #3 and #4 standard bags
- Oil Magnet bags pull oil out of process water and coolant
Prefer to talk? Call 732.329.2500
